Quay Quarter
Specifications
  • Client
    AMP Capital Investors Limited
  • Location
    AMP Centre Tower, 50 Bridge Street, Sydney
  • Completion
    September 1, 2013 — July 1, 2022
  • Size
    100000m2
  • Services
    Architecture
Image View

Architecture

Quay Quarter Sydney & Tower, shaping a sustainable city.

Quay Quarter Sydney is an entirely new precinct with a front-row seat to Circular Quay. The anchor for the precinct is Quay Quarter Tower: designed by 3XN and developed in partnership with BVN. It's one of the world’s most complex adaptive re-use projects. QQT demonstrates the possibilities of upcycling existing buildings to give them a new life and reduce the impact of construction on the planet.

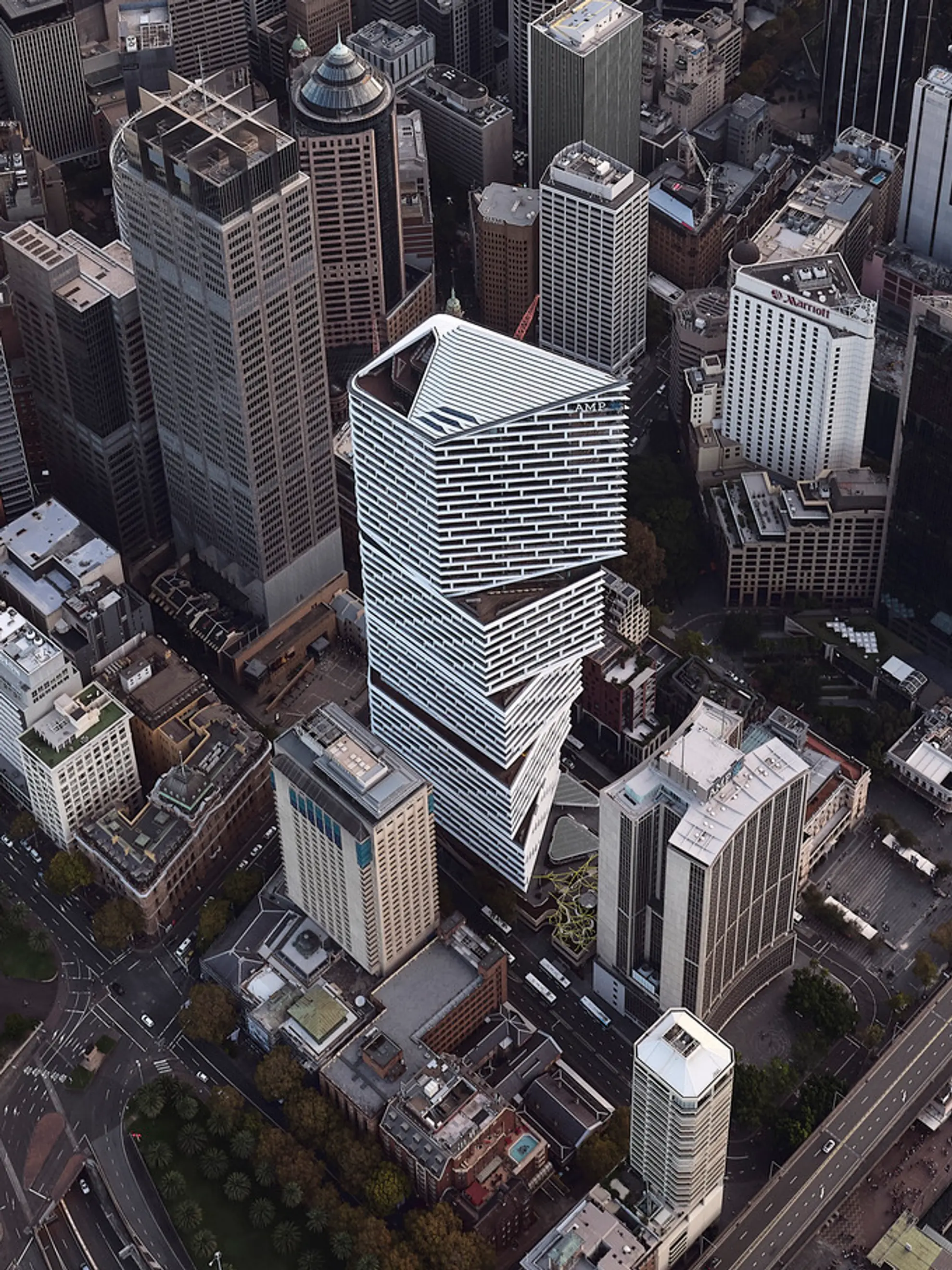

Sydney CBD Aerial View Quay Quarter Tower Sydney
Sydney Aerial View Quay Quarter Tower Sydney
Sydney Aerial View Quay Quarter Tower Sydney
A Journey of Sustainable Design

Quay Quarter Tower began with an inspiring brief. AMP Capital’s vision from the outset was to retain the original building and adapt it for contemporary Sydney. This was just one of 60 sustainability targets. QQT had high ambitions from the outset and is a blueprint for environmentally responsible architecture: 6-star Green Star, 5.5 Star NABERS energy rating and WELL Gold certified.

Retaining the original building represents an embodied carbon saving of 7.3million kg compared to a conventional construction project of this scale: equivalent to two years of operational emissions from basic building systems like air conditioning and elevators.

Sydney CBD Aerial View Quay Quarter Tower Sydney

Performative Pattern

The textured tower façade created by the projection of the sun-shading frame is performing two tasks; the first is to control the high solar radiance on the building, and the second is to reduce the perception of scale of the building mass through the staggered frame alternating direction per block to enhance the individual, stacked block aesthetic.

This passively sustainable technique not only pays homage to Sydney’s skyline marked by the textured façades, but it significantly reduces the mechanical needs of the building while maximizing views for the users.

The tower design is comprised of five twisting volumes, each stacked slightly askew, breaking down the scale of the building into five more human scale “vertical villages” enhancing views over the Opera House and Sydney Harbour.
The Making of Quay Quarter Tower

BVN worked on this extraordinary project for almost a decade. First we completed the masterplan for AMP Capital, and identified the tower as the centrepiece for the precinct. Danish architects, 3XN were the winners of an international design competition with a design to augment the existing tower and create a “vertical village”.

3XN and BVN developed the project in detail, resolving the many complex challenges of transforming the original building, and completing tender documentation. When Multiplex was appointed to build QQT in 2018, BVN as the Executive Architect was novated to the builder. coordinating construction through to conclusion in 2022.

A new laneway has been created in the Goldsborough Lane precinct, separating 33 Alfred Street from QQT and enabling pedestrians to move through the site viewing world-class artwork and heritage interpretation installations.

Under Construction. There are over 30 spiral stairs in QQT. These were engineered and fabricated in Sydney with Icon Metal.

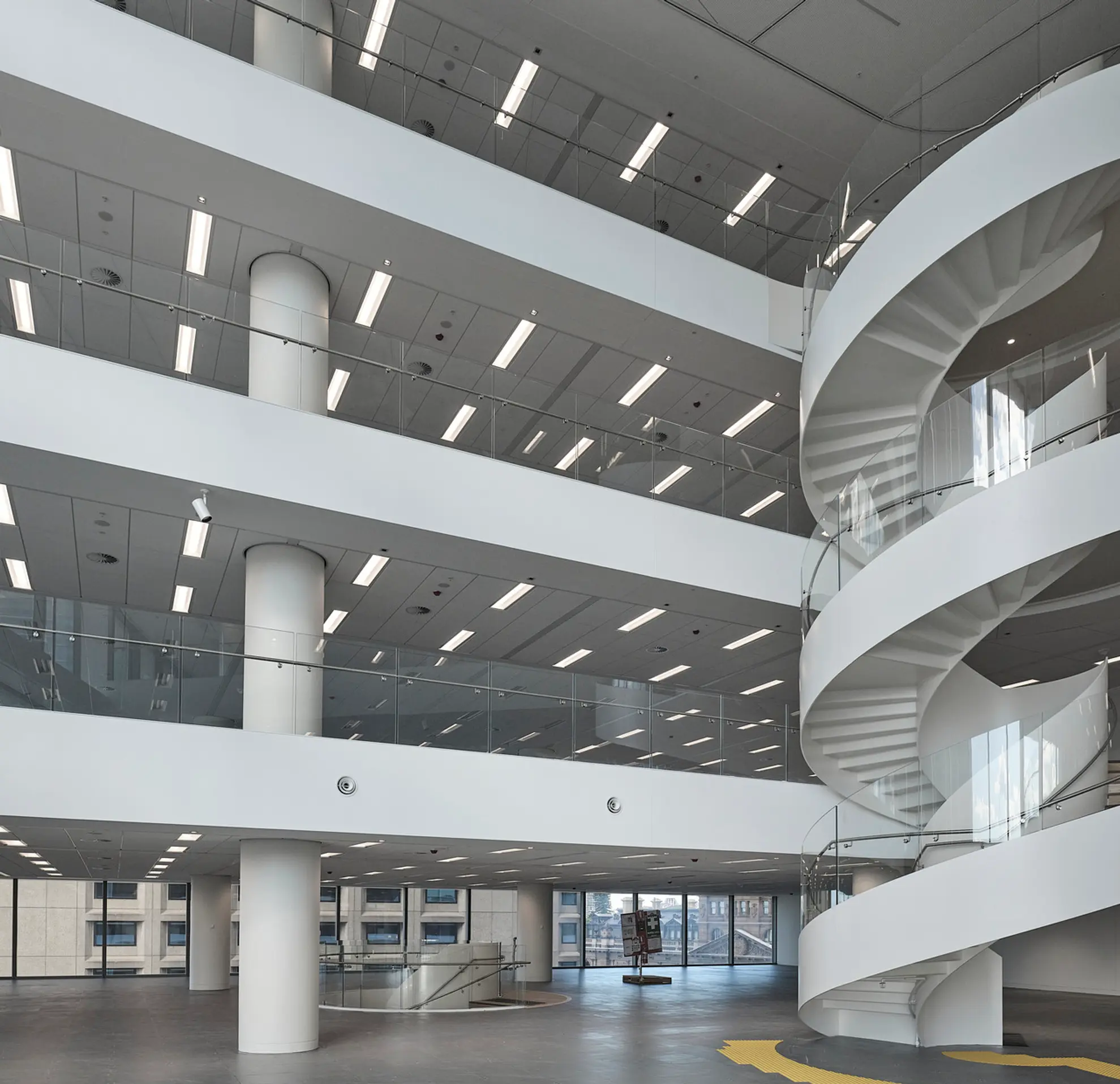

Multi-level atriums provide synergy between floors. It's the anti-thesis to a typical stacked high-rise. Tenancies are connected though spiral stairs, providing moments to enjoy the space and its knock-out harbour views.

A Complex Sequence of Events

3XN’s concept was for a twisting tower, comprising five distinct workplace hubs each connected with their own central atrium. At the base sits a mixed-use commercial podium including (edible!) public gardens. And at its core: an existing concrete tower and a new steel and concrete structure, united and seamless.

Delivering this vision required a complex sequence comprising three phases of demolishing, remodelling and new construction. The process took many months to develop.

Fifty years of settlement and wind pressure distortion demanded a complex structural solution that could overcome the legacy of the existing building, connect and align it with the new and provide long term stability.

Some floorplates have a deep, atrium cut on their northern edge to maximise daylight, allowing panoramic views of the harbour and city skyline.

De-constructable floors slabs within the atrium spaces have provided the client with leasing flexibility and a dynamic varied mix of tenancy sizes to meet occupier needs.

A Hard-Working Facade

A seamless and unified façade wraps the old and new buildings. Thermal properties create cooling effects that reduce reliance on air conditioning. Sunshades atop the tower reduce solar gain and avoid the need for blinds. The staggered repetitive façade framing reduces visual impact and prevents reflections annoying drivers on the Harbour Bridge.

The façade comprises over 5000 façade panels, weighing 1.3tonnes, and each unique, creating the distinctive form.

Accommodating 10,000 people a day

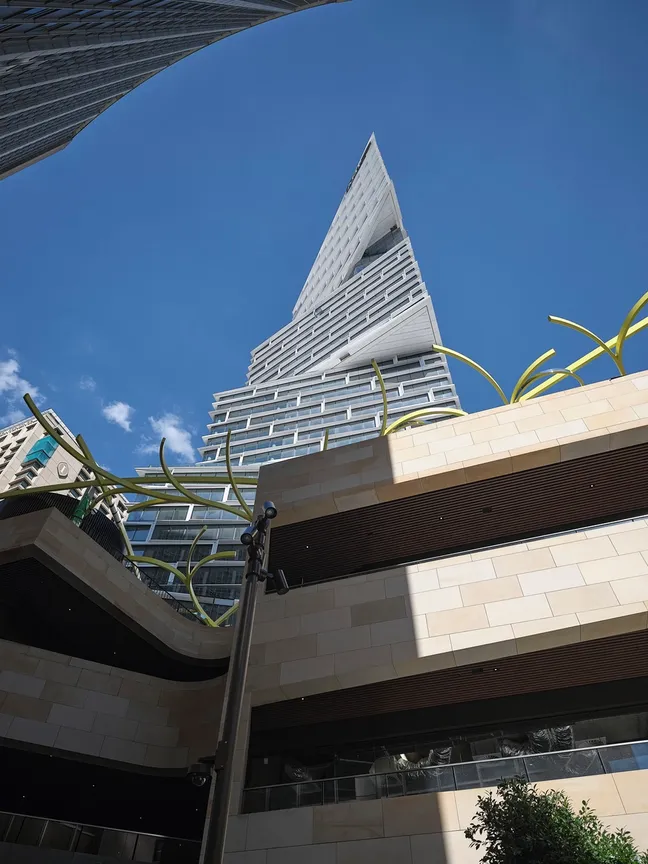

The podium comprises 30 premium shops, eateries and fitness spaces, plus the entry to the Office Lobby. It’s a vast and dynamic space complete with Tom Dixon-designed furniture and fixtures. Just outside, a striking sculpture accentuates a 4,000sqm leisure space that features event spaces and edible gardens.

The building is designed to play host to 10,000 people a day. “Experience mapping” was used to develop key design moves: the best place for the front doors, the design and width of stairs, and the position of escalators, all leading to the office core.

Four lift banks cater for occupant numbers at the start of each work day. Existing lift shafts were re-used where possible and new shafts created to accommodate the additional people now housed in the tower.

The lobby areas have been developed with London interior designer Tom Dixon. They encompass a double-height lobby, a co-working and conference suite as well as several levels of high-quality retail and lifestyle tenancies.

The workplace tower

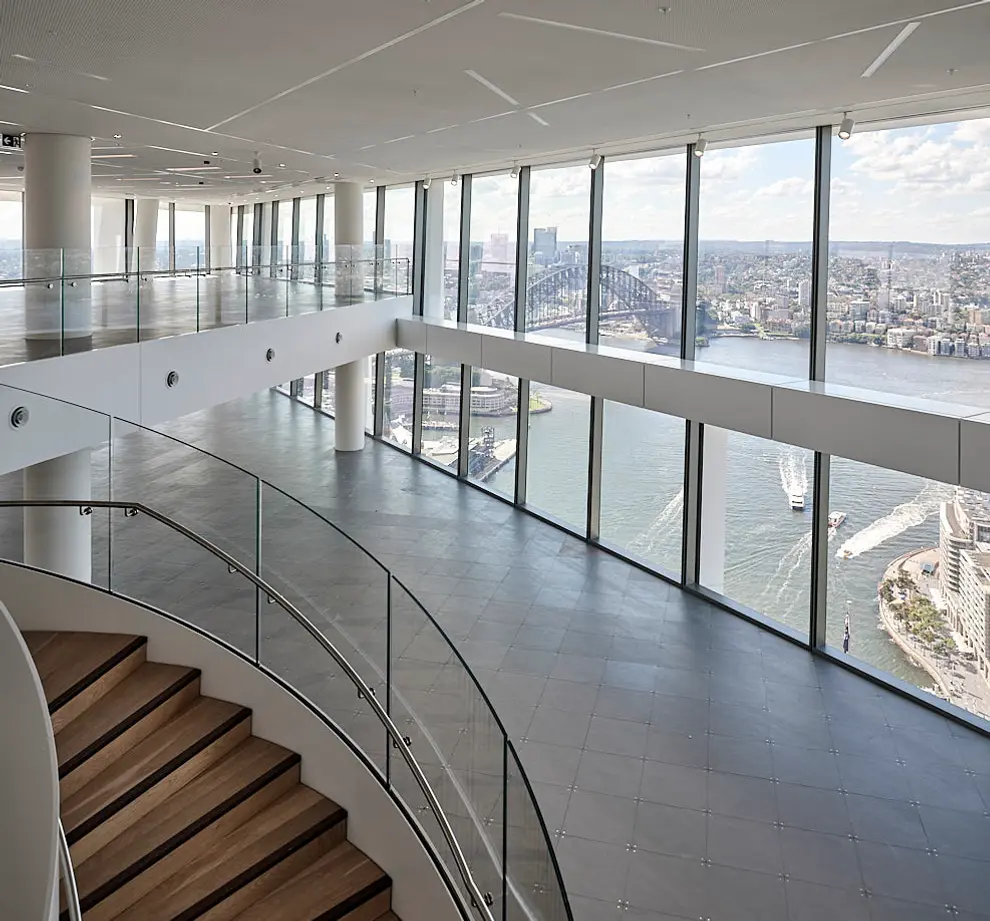

At 50 floors above podium, the harbour views from inside QQT are unrivalled. Multi-storey atriums with 35 connecting spiral staircases make it a spectacular world-class workplace. It’s also one of the most flexible: fully modular, with a de-constructable floor system enabling contemporary organisations to create their ideal workplaces. This adaptability ensures the tower has great leasing flexibility and will keep pace with changing needs of business tenants.

A successful outcome

AMP had a vision for an upcycled Quay Quarter Tower that would be sustainable, inspirational and adaptable. The result sets a new standard for workplace buildings, and how we continue to evolve our cities.

IMPACT

7.3 Million kg

Embodied carbon conserved. Equivalent to 35,000 flight from Sydney to Melbourne.

35,000

Estimated number of people who have worked on the redevelopment of AMP Centre up to Practical Completion in 2022.

65%

Of the original tower structure and 95% of the original core retained

10,000

People will occupy QQT every day, with an estimated 1 million people passing through QQT in the next decade.

The Process

View as Slideshow

Timelapse of the Construction (Jan 2018-April 2022). Courtesy of Multiplex.

The new tower repurposes the former AMP Centre at 50 Bridge Street, originally built in 1976.

QQT retains 65% of the existing building’s structure and adds 45,000 square metres of new volume onto the north side. The project is believed to be the tallest partial-demolition and adaptive re-use in the world.

The sketch illustrates the extent of partial-demolition (orange) and new-build (blue).

It was important to understand the building movement and structural performance during demolition and the gradual re-build and completion stages.

A concept of the north tower (steel frame) and south tower (existing concrete frame) was developed to ensure these complex movements were fully understood and how the new-build stitches into the existing – including the new building systems, lifts and the facade ‘wrap’.

A build sequence was developed with Multiplex and the consultant team to solve the complex site logistics ensuring the new-build seamlessly connects to the existing one.

View of QQT from Circular Quay Rail Station.

The Process (Gallery)

Timelapse of the Construction (Jan 2018-April 2022). Courtesy of Multiplex.

The new tower repurposes the former AMP Centre at 50 Bridge Street, originally built in 1976.

QQT retains 65% of the existing building’s structure and adds 45,000 square metres of new volume onto the north side. The project is believed to be the tallest partial-demolition and adaptive re-use in the world.

The sketch illustrates the extent of partial-demolition (orange) and new-build (blue).

It was important to understand the building movement and structural performance during demolition and the gradual re-build and completion stages.

A concept of the north tower (steel frame) and south tower (existing concrete frame) was developed to ensure these complex movements were fully understood and how the new-build stitches into the existing – including the new building systems, lifts and the facade ‘wrap’.

A build sequence was developed with Multiplex and the consultant team to solve the complex site logistics ensuring the new-build seamlessly connects to the existing one.

View of QQT from Circular Quay Rail Station.

01 of 07

Credits

BVN
Cameron Angus, Saskia Arief, Laurie Aznavoorian, Connor Badenko, Louise Barbour, Chris Bickerton, Matthew Blair, Gary Cai, Andre Callanan, Marcos Camara, Jonathan Capparelli, Neil Carter, Alana Chappelow, Yashan Chen, Liam Croft, Daniel Cruddace, Michele Di Giorgio, Bronte Doherty, Jamie Don, Charlie Fanniere, Joe Fiumedinisi, Andrew Foster, Tobias Fuzi, Julio Garcia Pizarro, Adriana Haindl, Erika Halim, Alex Hoang, Shao Ing Gan, Ian James, Paul Jenkins, Jenny Jong, Kirsten Karst, Aileen Khouphongsy, Amelia Lipa, Neil Logan, Rhiannon Macken, Danielle McParland, Marc Micuta, Alan Monckton-Milnes, Alessandra Moschella, Joseph O'Meara, James Paviour, Zig Peshos, Selina Qiu, Mitch Reed, Marcus Rigon, Domino Risch, Annisa Rizal, Ploiphan Saengporm, Catherine Skinner, Jessica Smith, Sergio Sottomaior Alves, Vahid Terani, Michelle Vassiliou, Ricardo Velez-Calvo, Katherine Wiedersehn, Sam Williams, Pouwel Wind
Collaborators

3XN and Executive Architect, BVN

Consultants

Pier Property Corporation, BG&E, Arup, Group DLA, Morris Goding Accessibility Consulting, Tom Dixon, Acoustic Logic, Equilibrium Air Conditioning, Climatech, Axis, ASPECT Studios, Urbanite, Studio Olafur Eliasson, WT Partnership, Five at Heart, TTW, Urbis, Star Group, Precision Fire Services, Icon Metal, Sharvain Projects, Austral Interiors, Foxville Projects Group (NSW), Maxton Fox, Top Knot Carpentry & Joinery, Deemah Stone, Webb Australia Group, Farra Engineering

Collaborators

3XN and Executive Architect, BVN

Consultants

Pier Property Corporation, BG&E, Arup, Group DLA, Morris Goding Accessibility Consulting, Tom Dixon, Acoustic Logic, Equilibrium Air Conditioning, Climatech, Axis, ASPECT Studios, Urbanite, Studio Olafur Eliasson, WT Partnership, Five at Heart, TTW, Urbis, Star Group, Precision Fire Services, Icon Metal, Sharvain Projects, Austral Interiors, Foxville Projects Group (NSW), Maxton Fox, Top Knot Carpentry & Joinery, Deemah Stone, Webb Australia Group, Farra Engineering

Photography

Martin Siegner

Skyview Aerial – courtesy of Multiplex

Multiplex

Daniel Cruddace

Awards

Steel Staircase - 2022 Australian Steel Institute Awards - Winner of the Buildings: Small Projects Award

2023 CTBUH - Winner of the Best Tall Building, Worldwide Award

2023 CTBUH - Winner of the Space Within Award

2023 CTBUH - Winner of the Construction Award

2023 CTBUH - Winner of the Structure Award of Excellence

2023 CTBUH - Winner of the Best Tall Building 200-299m Award of Excellence

2023 CTBUH - Winner of the Best Tall Building, Oceania Award of Excellence

2023 CTBUH - Winner of the Urban Habitat Award of Excellence (Quay Quarter Lanes)

2023 CTBUH - Winner of the Repositioning Award of Excellence

2023 CTBUH - Winner of the Construction Award of Excellence

2023 CTBUH - Winner of the Systems Award of Excellence

2023 Urban Land Institute (ULI) Asia Pacific - Winner of the Award for Excellence

2023 UDIA NSW Chapter, Winner of the Urban Renewal Award

2023 UDIA NSW Chapter, Winner of the Urban Renewal Award

2023 AIA NSW Chatper Awards, Winner of the Lord Mayor's Prize

2023 AIA NSW Chatper Awards, Commercial Architecture Award

2023 Urban Land Institute (ULI) Asia Pacific - Winner of the Award for Excellence

2022 World Architecture Festival Awards (WAF), Winner of the World Building of the Year Award. (3XN+BVN)

2022 World Architecture Festival Awards (WAF), Winner of the Completed Buildings: Office Award. (3XN+BVN)

2022 Deutsches Arkitekurmuseum (DAM) and DekaBank, International High Rise Award (Internationaler Hochhaus Preis), Jointly awarded by the City of Frankfurt, (3XN+BVN)

2022 Australian Steel Institute Awards, Winner of the Buildings: Small Projects Award. (Submitted by Icon Metal+BVN)
